Dual Row 2*2 Black Zn-Line Pin Header Tin 100u'' Plated Terminals

Product Name:Dual Row 2*2 Black Zn-line Pin Header tin 100u'' Plated Terminals

Product Overview:
Type: this is a Dual Row (Dual Row) 2x2 configuration pin header for use in electronic devices or circuit boards that require high density connections.
Color: Black housing provides visual uniformity and aesthetics, while potentially providing better resistance to dirt and weathering.
Material: Zn-line (zinc alloy or other zinc-based materials) is used as the main material, providing excellent conductivity and mechanical strength. Pin sections are tinned to a thickness of 100 micro inches (100u'') for improved corrosion resistance and solderability.
Pin Configuration: Double-row layout, 2 pins per row, 4 pins in total, suitable for applications requiring 4 independent electrical connections.
Application areas: widely used in electronic equipment, communication equipment, industrial automation, automotive electronics, instrumentation and other fields, as an electrical connection component between circuit boards.

Product Features:
High-density connection: double-row layout improves pin density, suitable for occasions with limited space.
Excellent conductivity: made of high quality materials to ensure good conductivity.
Corrosion resistance: Tin-plated pin surface treatment, effectively prevent oxidation and corrosion.
Easy to weld: Tin-plated pins are easy to weld and improve production efficiency.
Stable and Reliable: Reasonable structural design ensures stability and reliability in long-term use.

Technical parameters:
Pin spacing: according to the specific model, common 2.54mm, 1.27mm, etc..
Pin diameter: according to specific models, usually 0.5mm to 1.0mm.
Pin length: customized according to specific needs, including the length of the part inserted into the circuit board and the length of the exposed part.
Operating Temperature Range: Depending on material properties, typically -40°C to +85°C or wider.

Caution:
Please read the product manual carefully before use to understand the detailed specifications and usage of the product.
When soldering, please pay attention to controlling the temperature and time to avoid overheating which may lead to deformation or damage of the pins.
Please make sure that the pin row pin matches the hole position of the circuit board to avoid improper installation leading to poor connection or damage.

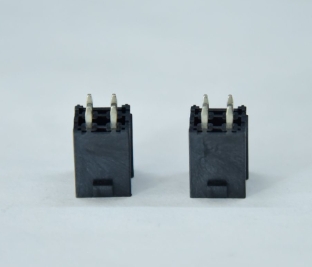

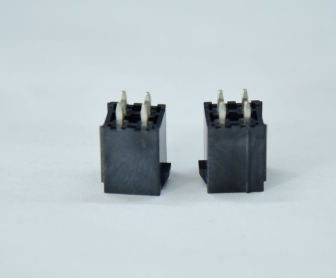

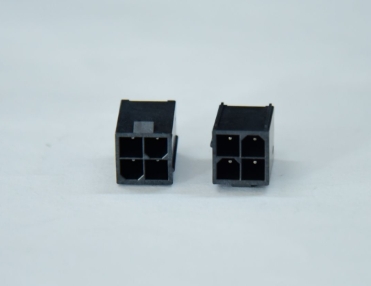

Dual Row 2*2 Black Zn-Line Pin Header Tin 100u'' Plated Terminals Images
